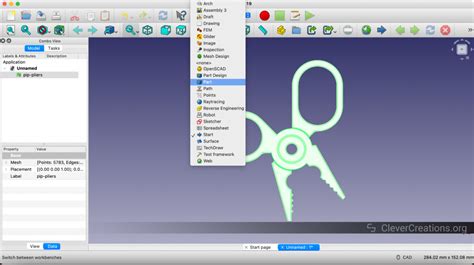

edit stl in freecad|editing files in freecad : Pilipinas Open and edit STL files in FreeCAD. Import an STL file into FreeCAD. Start FreeCAD and create a new document with File > New, In the menu select File > Import . We would like to show you a description here but the site won’t allow us.
edit stl in freecad,This tutorial is very helpful for 3D Printing where you have to modify existing STL file and again convert it into STL file for 3D .more. #FreeCAD #FreeCADtutorial #FreeCADSTL In this.
Download FreeCAD: https://www.freecadweb.org/index.php FreeCAD Wiki: https://wiki.freecadweb.org/Main_Page In this video I teach you .
edit stl in freecad editing files in freecad I always edit my STL files with FreeCAD. But there are other options like Blender or Meshmixer for example. I created a few videos about editing STL files and here’s one of them below. This video tutorial will help you get started with FreeCAD's great tools and use them to quickly and easily edit STL files. #freecad #howto #partdesign. FreeCAD is . Open and edit STL files in FreeCAD. Import an STL file into FreeCAD. Start FreeCAD and create a new document with File > New, In the menu select File > Import .editing files in freecad Learn how to edit STL file in FreeCAD, a free and open source CAD software. This tutorial is useful for 3D printing, where you need to modify existing .
If you want to 'edit' an STL, FreeCAD isn't the best tool. Look at blender or Meshmixer. If you want to 'work' with an STL (or include in in your model), the above steps are correct.
Hello FreeCAD community, I made a video about editing (downloaded) STL files in FreeCAD 0.18. This video shows the method to cut out shapes of an STL file with .
I recently created a simple holding plate in FreeCAD to mount the Raspberry Pi camera on front of my latest robot. I’ll use that as a test to show how you can modify .
I recently created a simple holding plate in FreeCAD to mount the Raspberry Pi camera on front of my latest robot. I’ll use that as a test to show how you can modify .
In this tutorial we will cover how to import STL/OBJ files in FreeCAD. Since the mesh-format STL/OBJ is dimensionless, FreeCAD will assume on import that the .Look into the mesh remodel workbench. It’s an add-on that lets you create references from the vertices and lines of the stl. While it’s true that editing stls is kind of painful overall, you can do it if you know the tools. I've seen many videos where people import the stl, go to "part" -> "create shape from mesh" -> "convert to solid . Short tutorial on how to edit an STL mesh using FreeCAD. Can also import the stl, trace it then delete it. (To get sizes, etc.) All that said, the general process to use STL files is: - select Mesh workbench. - select import mesh. - select stl file. - select Part workbench. - select the mesh. - . Dear All, I'm of course a beginner on Freecad and would need some indications on how to modify the dimension of .stl files. In relation to the attached files, I should: 1) modify the cases in order to have the following measures : 43mm x 23mm. 2) modify the 4 holes to host screws of 2mm thickness. Thank you for any support you .
#freecad #stl #edit #modify In this tutorial, learn how to edit STL files in FreeCAD using a practical example of a motor clamp. We'll guide you through the .
edit stl in freecad #freecad #stl #edit #modify In this tutorial, learn how to edit STL files in FreeCAD using a practical example of a motor clamp. We'll guide you through the .Adjust the Placement Angle/Position via the "Data" in the property editor lower left side. Switch to the "Arch" workbench. Double click the solid to cut in the 3d view. Ctrl+click the plane you will cut with. Select "cut-plane" and choose which side to capture. You will have to play around with the pattern in 12. How to edit an STL file in FreeCAD. “Part” > “Create shape from mesh”. A tesselation distance of 0.10 should work. Delete or hide import. Create a new file “File” > “Import”, import the STL Select the Part workbench Select the imported model “Part” > “Create shape from mesh”. A tesselation distance of 0.10 should work. Note: an object needs to be selected before starting the command. Starting from step 2 you need to select the last object in the tree. menu Part --> Create shape from mesh. menu Part --> Convert to solid. Optional: menu Part --> Refine shape. The STL from your link has many, many facets and the created solid is massive.
edit stl in freecad|editing files in freecad
