d flip flop synchronous counter,This video will show you how to design a synchronous counter using D flip flops. You will find that some steps are fairly easy (creating the State Transition table and adding Flip Flop.

BCD counter using D-flip flop is a modified D-flip flop’s Up-counter. The modification it needs is the auto-reset function upon reaching . For this project, I will show how to design a synchronous counter which is capable of storing data and counting either up or down, based on input, using either a D flip . The D Flip-Flop is an edge-triggered circuit that combines a pair of D latches to store one bit. It is commonly used as a basic building block in digital electronics to create counters or memory blocks such as shift registers. In this .Current Circuit: Synchronous Counter. This circuit is a 4-bit synchronous counter . Ripple counters have the disadvantage that not all the bits are updated at the same time; the flip-flops . The flip flop to be used here to design the binary counter is D-FF. Let’s draw the excitation table for the D-FF. The characteristic equation for the D-FF is: Q+ = D. We need to design a 4 bit up counter. So, we need 4 D-FFs to .Counters Synchronous Counter design using D Flipflops and design steps are explained in this video. for design of counters, Use excitation table of Flipflop and get the expression for inputs as.A synchronous counter, in contrast to an asynchronous counter, is one whose output bits change state simultaneously, with no ripple. The only way we can build such a counter circuit from J-K flip-flops is to connect all the clock inputs . In this blog post we will design an electronic circuit using logics gates (combined into D-Type flip-flop circuits) to create a 4-bit binary counter. This approach will help us understand how a program counter may be .Also, a ripple counter cannot run as fast because it takes extra time for the carry to be propagated down the chain of counters. A synchronous counter solves these problems by using a single clock for all flip-flops, as shown above. Each flip-flop ANDs together the previous bits to determine whether to update. Next: Decimal Counter Schematic of D Flip-Flop Using Logisim Software [6]: DESIGN #2 – SYNCHRONOUS COUNTER: J-K FLIP-FLOPS. Table 5: State Definition Table (Design 2 – J-K Flip Flops)The below D flip flop is positive edge-triggered and synchronous active low reset D flip flop As soon as reset is triggered, the output gets reset on the next posedge of a clock. D Flip Flop with Synchronous Reset Verilog Code

Counters: D flip flops are used to create the counters which counts the number of event occurred in the digital system. Synchronous System: D flip flop is having in developing the synchronous system. Conclusion. In this article, we discussed the basis of D flip flop with the working principle of the D flip flops. We have also discussed about . Also, there is no propagation delay in the synchronous counter just because all flip-flops or counter stage is in parallel clock source and the clock triggers all counters at the same time. . and using the inverted output from J-K flip-flop, we can create Synchronous Down Counter. A 4-bit Synchronous down counter start to count from 15 (1111 . Synchronous Counter: It is a digital circuit that performs counting in binary numbers with the help of flip-flops and all flip-flops triggered simultaneously. . Overview :Toggle or D-type flip-flops can be used to make synchronous counters, and It is easy to design than asynchronous counters. Due to the clo. 5 min read. Design Mod - N .As we have discussed the asynchronous counter, output of one flip-flop stage is connected to the input clock pin of the next stage that introduces propagation delay. In a synchronous counter, all flip-flops within the counter are clocked together by the same clock which makes it faster when compared with an asynchronous counter. The synchronous counters count the number of clock pulses received at its input. The synchronous counter uses the same clock signal from the same source and at exactly the same time. Generally, it is constructed using either JK flip flop or T flip flop. Synchronous counters use edge-triggered flip-flops.Let us now understand the operation performed by the synchronous counter by considering a 3-bit synchronous counter: In the beginning, the flip-flops are set at 0, thus the outputs of all the three flip-flops i.e., Q C Q B Q A will be 000.However, at the falling edge of the first clock pulse, the output of flip-flop A toggles from 0 to 1. 3-bit synchronous up counter. Synchronous up Counter counts the number of clock pulses at its input from minimum to maximum. A 3-bit counter consists of 3 flip-flops and has 2 3 = 8 states from 000 to 111. The circuit of the 3-bit synchronous up counter is shown below. The clock pulse is given for all the flip-flops.

In a synchronous counter, all the flip-flops are synchronized to the same clock input. This means that for every clock pulse, all the flip-flops will generate an output. . When you are designing asynchronous counters using D flip-flops, all the inputs of the flip-flops are connected to their own inverted outputs. The only difference between . D-type Flip-flops. MOD counters are made using “flip-flops” and a single flip-flop can produce a count of 0 or 1, giving a maximum count of 2. . (0 or 1) to be stored under the control of the clock signal thus making the D . Synchronous Counter: It is a digital circuit that performs counting in binary numbers with the help of flip-flops and all flip-flops triggered simultaneously. . Let's discuss it one by one. Overview :Toggle or D-type flip .d flip flop synchronous counterA 4-bit synchronous counter built from D-flipflops with carry-input (count-enable) and carry-output. In this circuit, the single clock signal is directly connected to all flipflops, so that all flipflops change state at the same time.

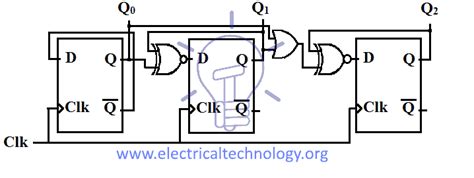

d flip flop synchronous counter Counters A 4-bit synchronous counter built from D-flipflops with carry-input (count-enable) and carry-output. In this circuit, the single clock signal is directly connected to all flipflops, so that all flipflops change state at the same time. This synchronous counter is designed as per the following steps −. Step 1 − Number of flip flops required −. This synchronous counter has four stable states, i.e. 0 (000), 1 (001), 2 (010), 4 (100). But we require three flip flops because it counts 4 (100) as well. Since three flip-flops can count eight states.Design Using D-flip Flop. Design of Down-counter using D-flip flop is also same as T-flip flop down-counter. The clock signal that is provided to the succeeding Flip-flops in D-flip flop Up-counter will be changed as done in T-flip flop down-counter. The output of each flip-flop will be fed as a clock input to the succeeding D-flip flops.

This post explains the Verilog description of the D flip-flop using the gate-level, dataflow and behavioral modeling methods. . This clear input becomes handy when we tie up multiple flip flops to build counters, shift registers, etc. Behavioral Modeling of D flip flop with Synchronous Clear. For synchronous clear, the output will reset at .

Design: Mapping to D Flip-flops Since each state is represented by a 3-bit integer, we can represent the states by using a collection of three flip-flops (more-or-less a mini-register). We will implement the circuit using D flip-flops, which make for a simple translation from the state table because a D flip-flop simply accepts its input value.
